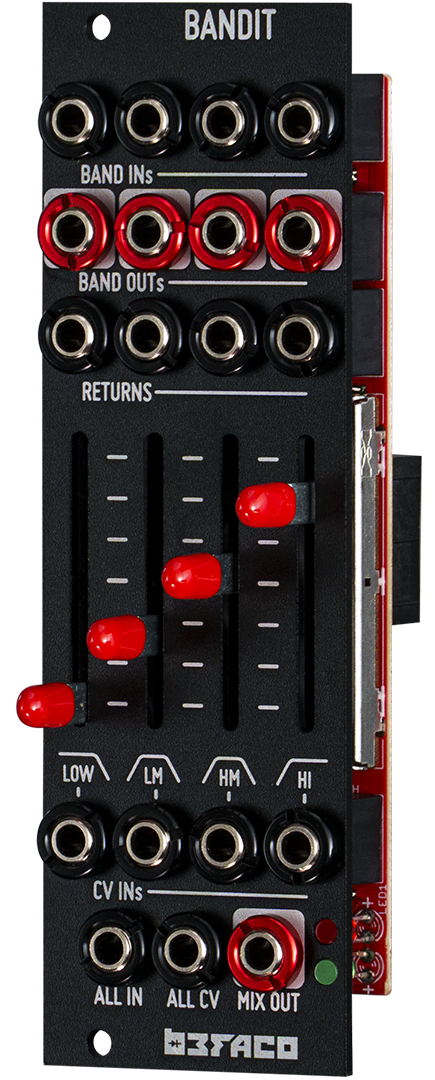

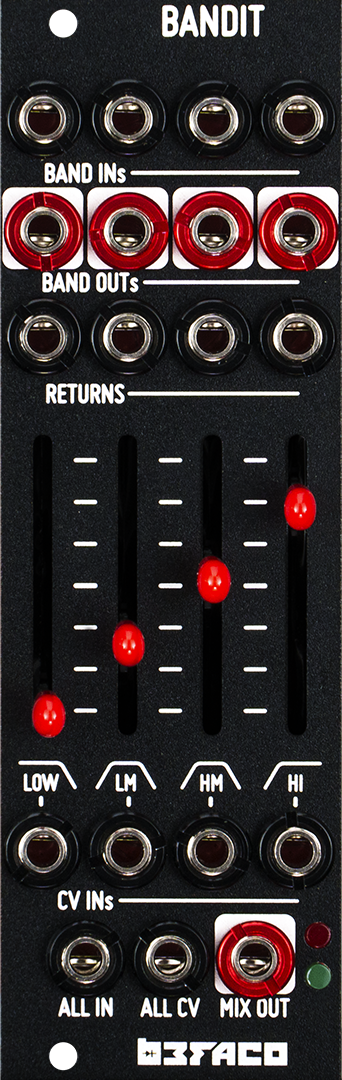

BANDIT

A spectral processing playground.
Bandit is a fun combination of band-pass filters, VCAs, and routing options.
It serves multiple functions including equalizer, crossover, multiband VCA, 4 band spectral mixer, and spectral external FX insert point.

Buy Assembled
Buy DIY Kit

It allows you to:

  • Cut or emphasize different frequency bands of a signal, acting as a voltage-controlled equalizer/isolator.
  • Split a sound into four different frequency bands for external processing, and if needed, insert them back
  • Mix four different signals with predefined tone placement in the mix.
  • Create four different sounds from one sound source by modulating the volume with four different envelopes.
  • Create evolving timbres by modulating one or more frequency bands using LFOs or audio-rate modulation.

FEATURES

  • Four Band CV controllable EQ
  • Individual inputs per Band
  • Return inputs
  • Level and Peak LEDs

SPECS

  • Current needs: +12V: 80mA, -12: 70mA, 5v:0
  • Width: 8 HP
  • Depth: 30mm (including power connector)
  • Designed, kits prepared and  modules assembled in Barcelona

RESOURCES

*This Interactive guide is meant to be used together with Befaco’s Assembly guide.
